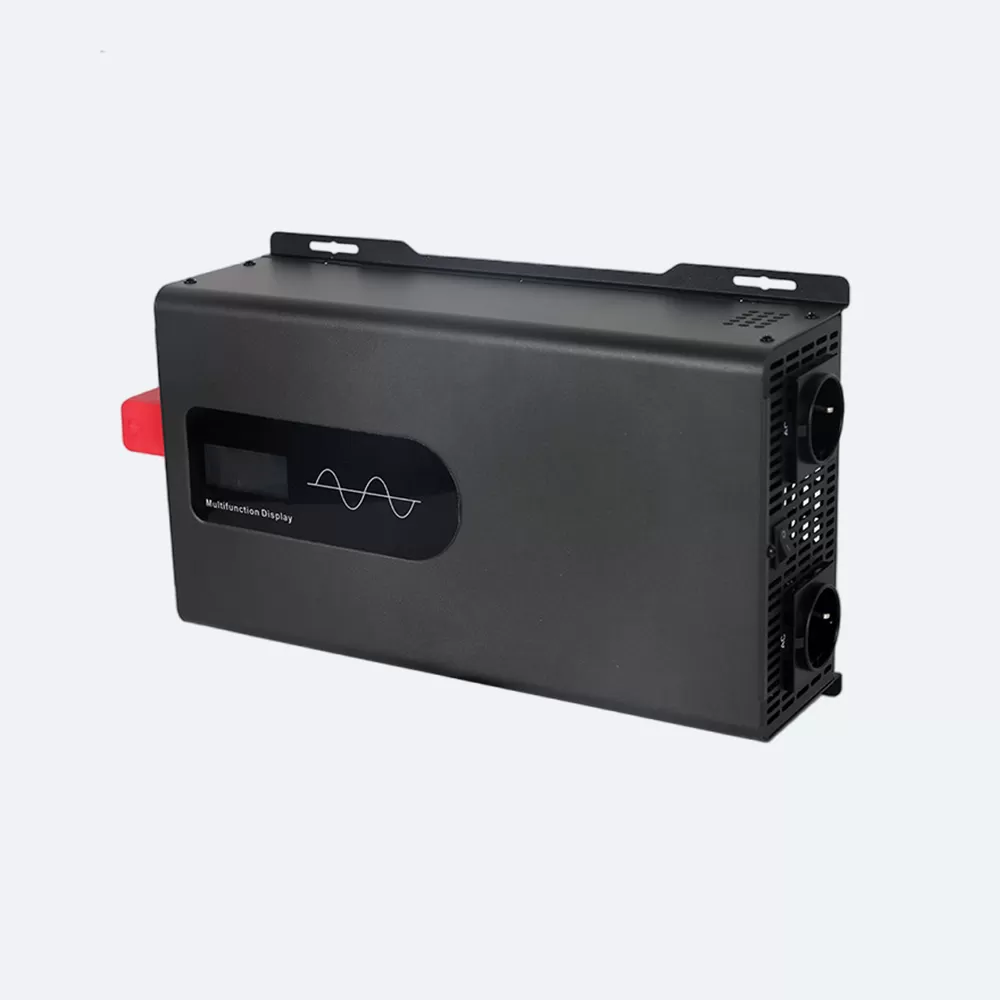

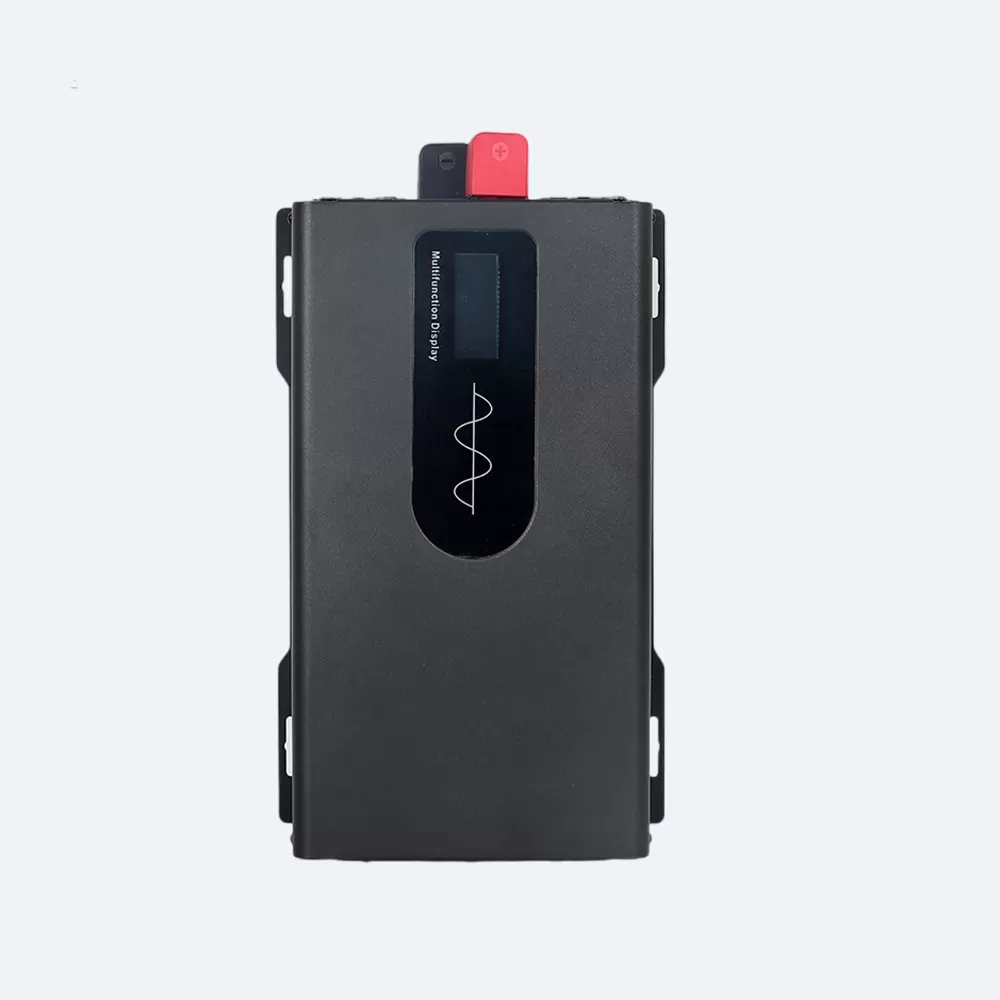

Pure Sine Wave Inverter(Customizable Socket Type)

Product Brief: Product Features:1. Pure sine wave output ensures no damage to electrical appliances.2. Built-in comprehensive safety features—including high-temperature, short-circuit, overload, and low-voltage protection—ensure long-lasting durability.3. Features an integrated display screen that clearly indica

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

Product Features:

1. Pure sine wave output ensures no damage to electrical appliances.

2. Built-in comprehensive safety features—including high-temperature, short-circuit, overload, and low-voltage protection—ensure long-lasting durability.

3. Features an integrated display screen that clearly indicates voltage and current power output.

4. Delivers full, genuine wattage without inflated specifications.

Applications: Night market vending, outdoor camping, and emergency power supply.

FAQs

How to Choose the Right MPPT Controller Size?

Calculate the required charging current using this formula:

Charging Current (A) = Total PV Wattage (W) ÷ Battery Voltage (V) × 1.25 (Safety Factor)

Example: 800W PV array + 48V battery bank → 800 ÷ 48 × 1.25 = 20.8A → Choose a 20A or 30A controller.
Also, ensure the PV open-circuit voltage (Voc) does not exceed the controller's maximum PV input rating.

What is the Correct Wiring Order?

To avoid damage, follow this sequence strictly:

Connect the Battery first (positive to positive, negative to negative).
Connect the Solar Panels (PV input).
Connect the Load (optional).
Note: Use appropriately sized cables and fuses for safety.

Why is My Controller Not Charging?

PV Voltage Too Low: Ensure the solar panel voltage is at least 5V higher than the battery voltage.
Wiring Issues: Check for reversed polarity, loose connections, or blown fuses.
Battery Full: The controller will taper or stop charging once the battery is full.
Over-temperature Protection: The controller may reduce current if it gets too hot.

What is Temperature Compensation?

A built-in sensor adjusts the charging voltage based on battery temperature. It prevents overcharging in hot weather and undercharging in cold weather, significantly extending battery life.

What is an MPPT Solar Charge Controller?

MPPT (Maximum Power Point Tracking) is an advanced technology that continuously monitors the voltage and current output from solar panels, dynamically adjusting the operating point to extract the maximum available power under varying light conditions. It efficiently converts high PV voltage to the battery’s charging voltage, significantly boosting energy harvest compared to traditional PWM controllers.
