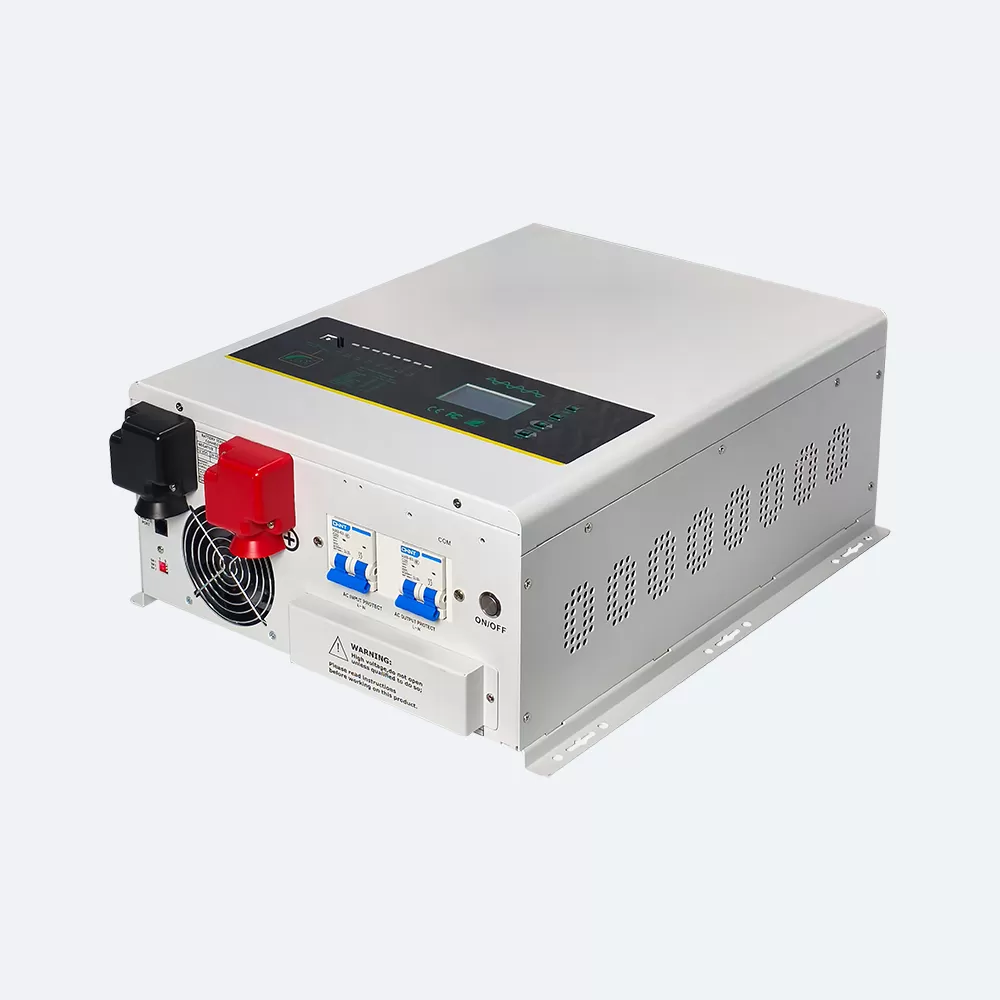

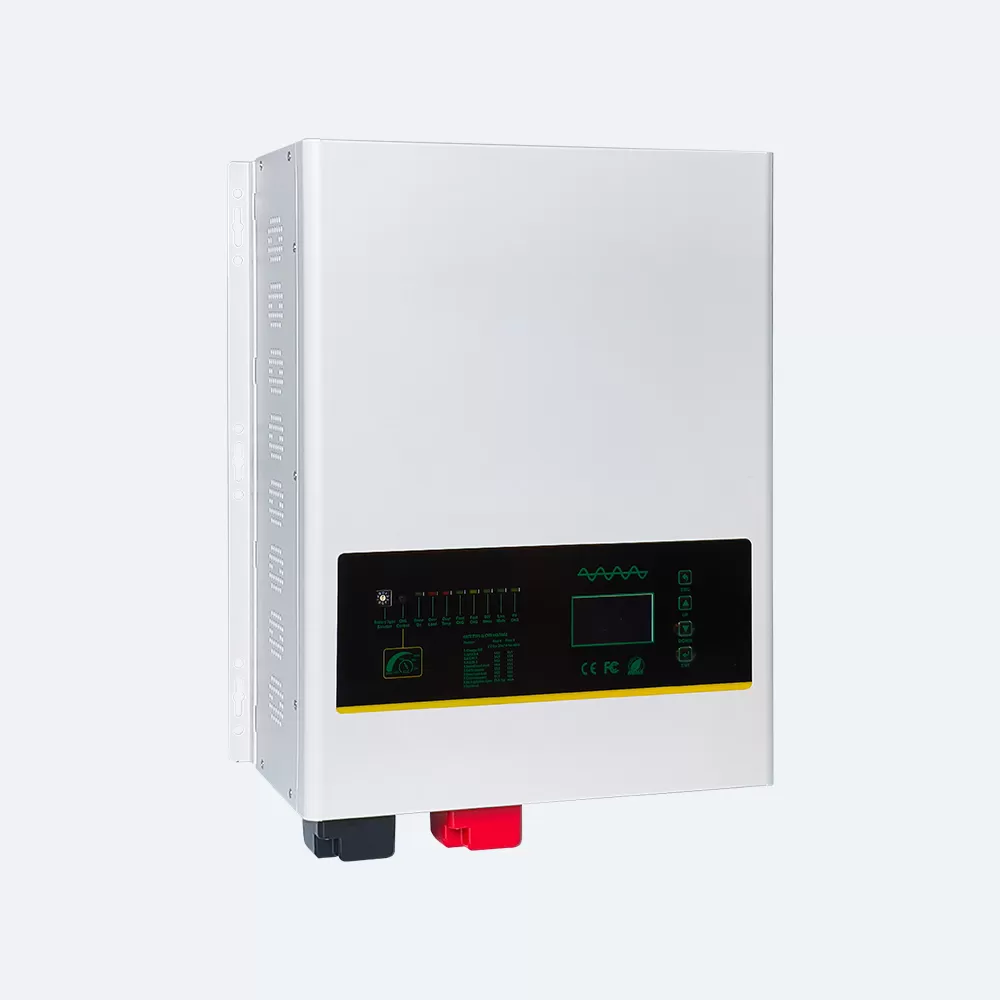

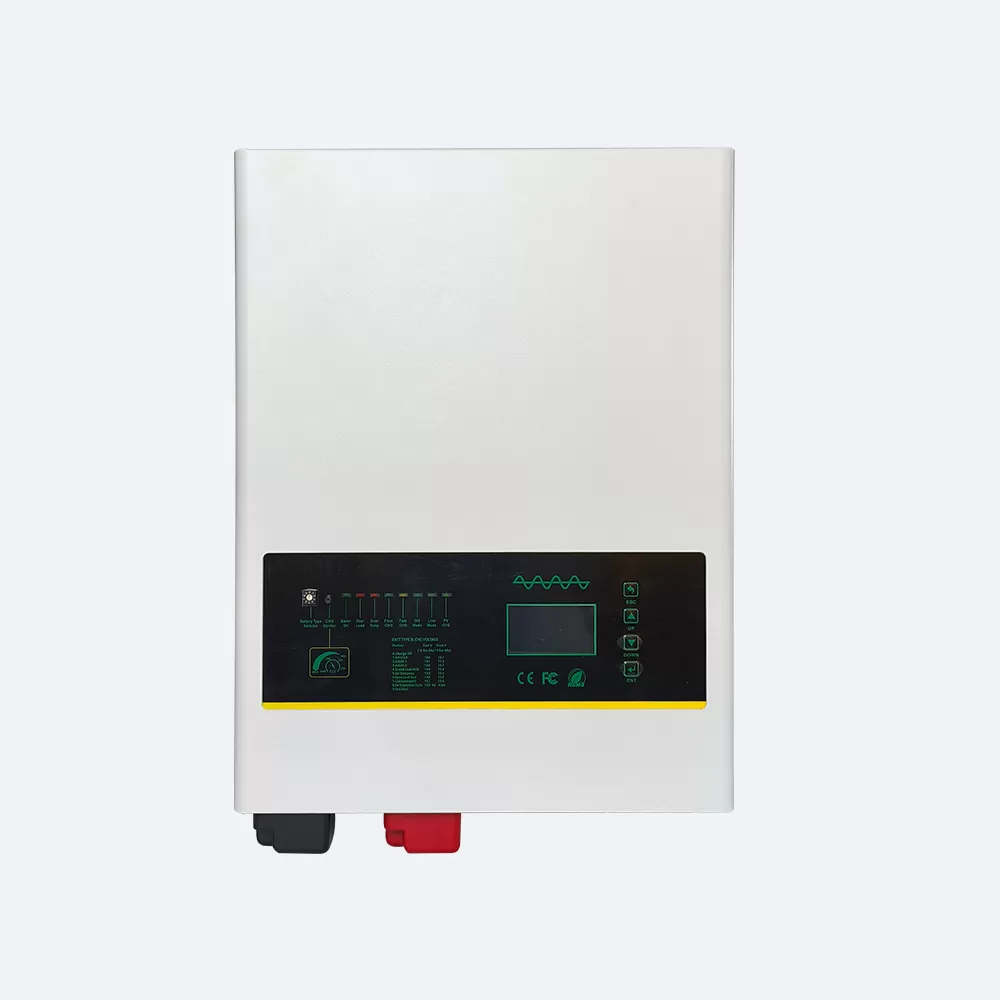

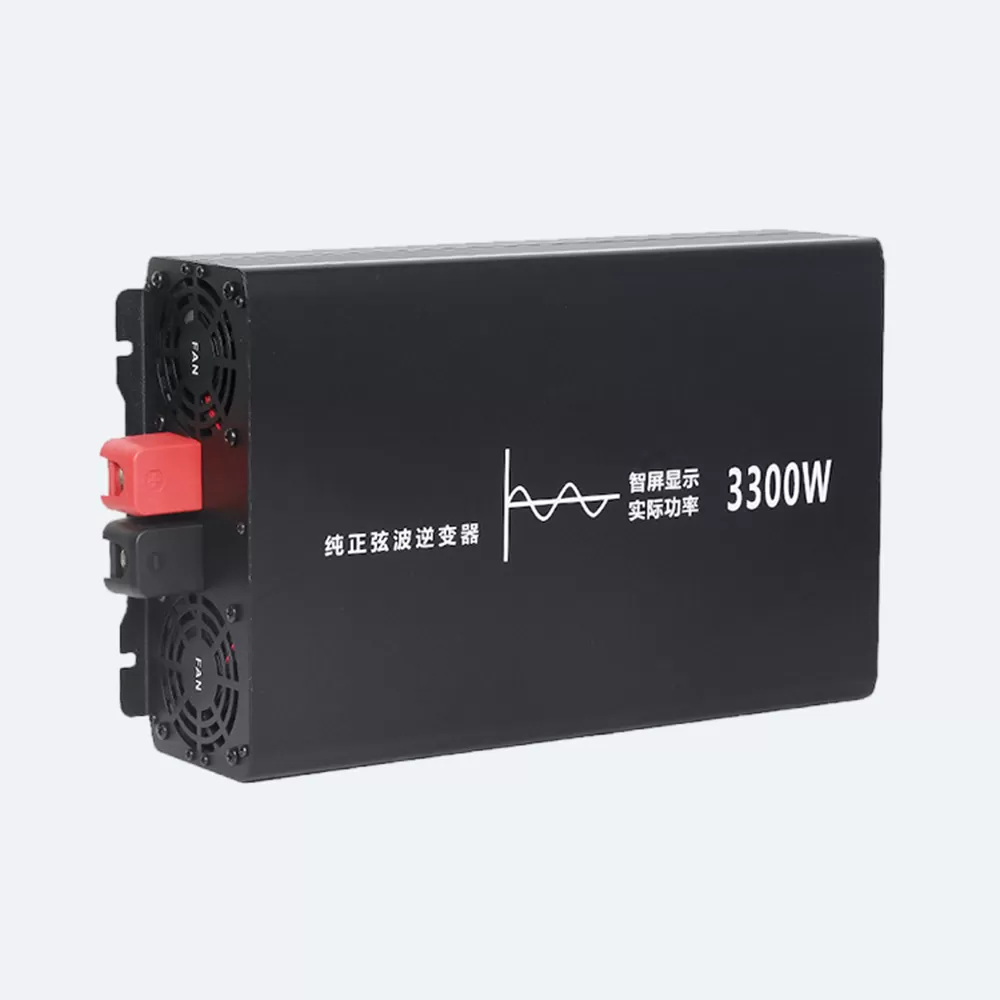

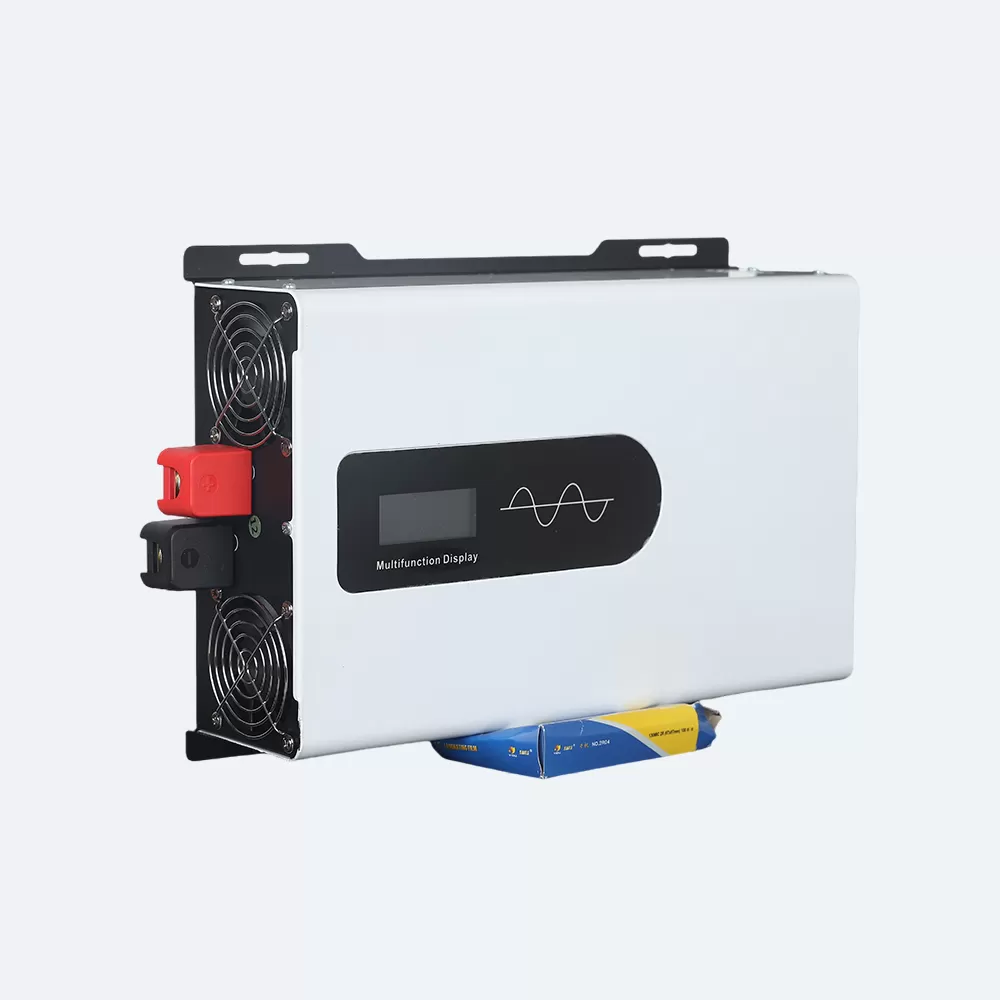

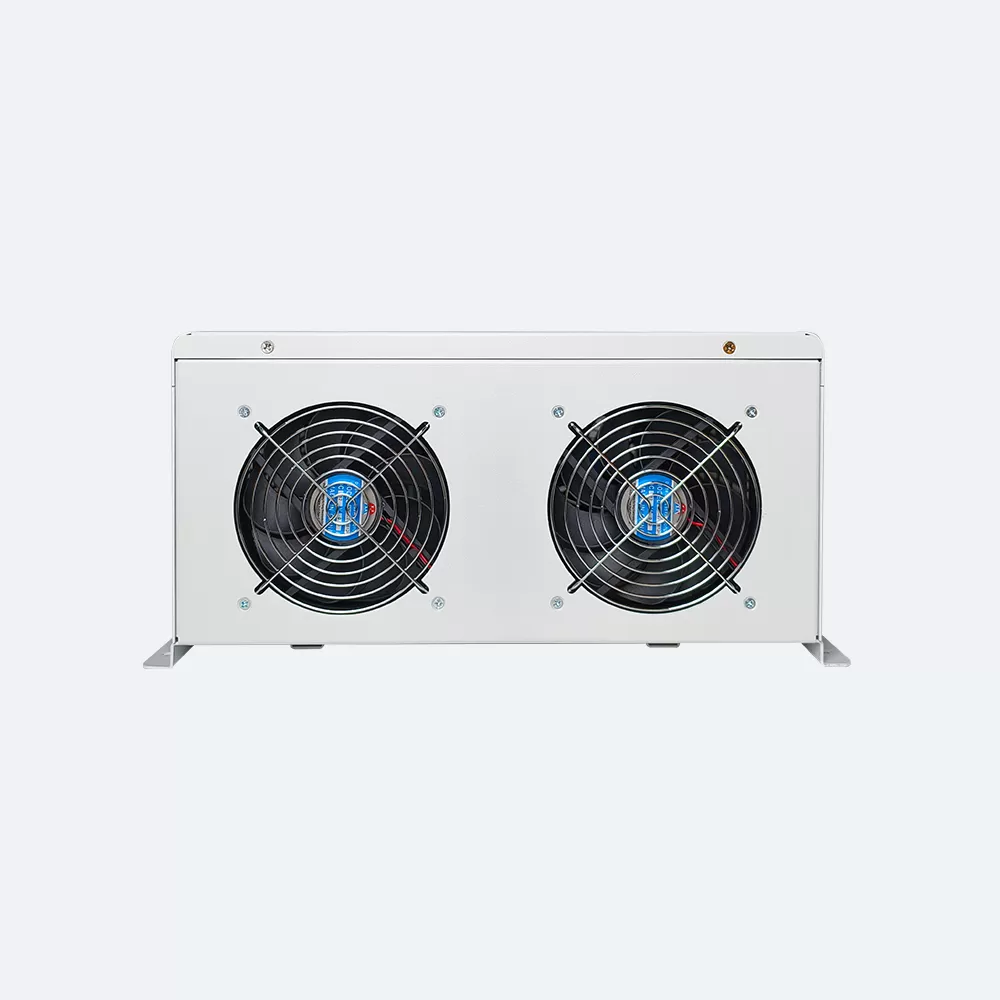

Low Frequency Pure Sine Wave Inverter Hs-Pv Series

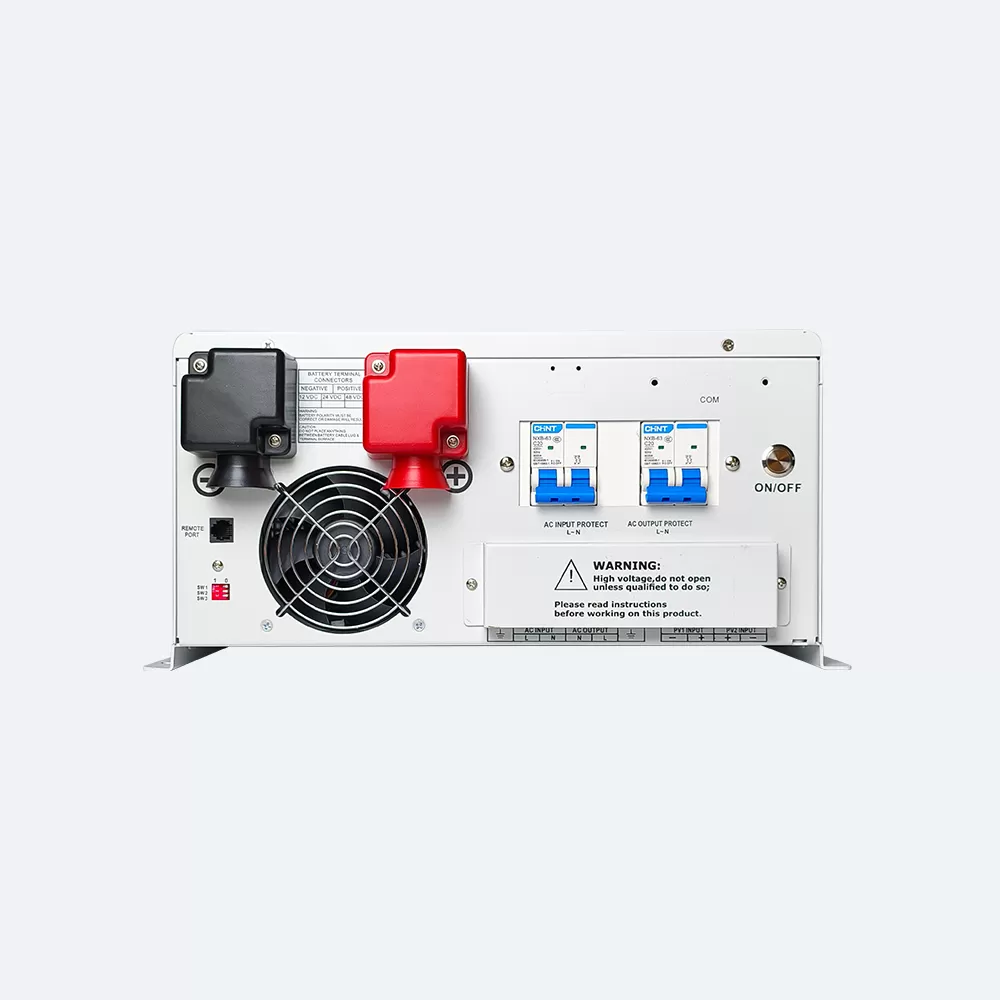

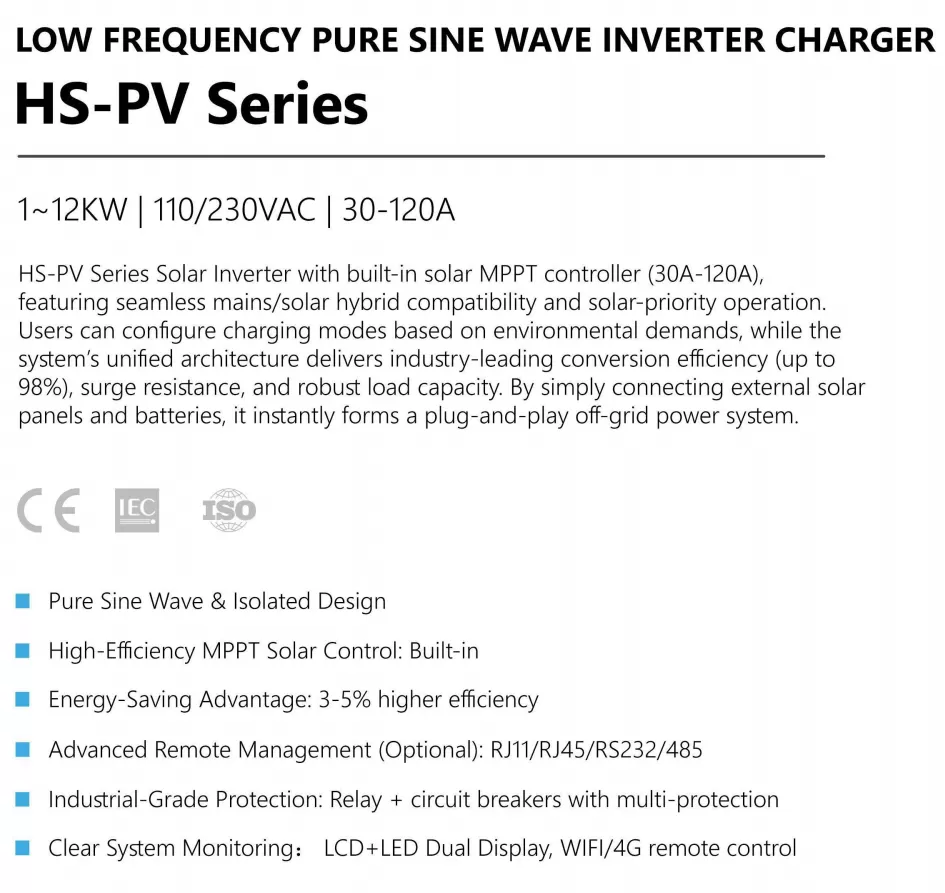

Product Brief: HS-PV Series Solar Inverter with built-in solar MPPT controller (30A-120A),featuring seamless mains/solar hybrid compatibility and solar-priority operation.Users can configure charging modes based on environmental demands, while thesystem's unified architecture delivers industry-leading conversion efficiency (up to98%), surge resistance, and robust load capacity. By simply connecting external solarpanels and batteries, it instantly forms a plug-and-play off-grid power system.

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

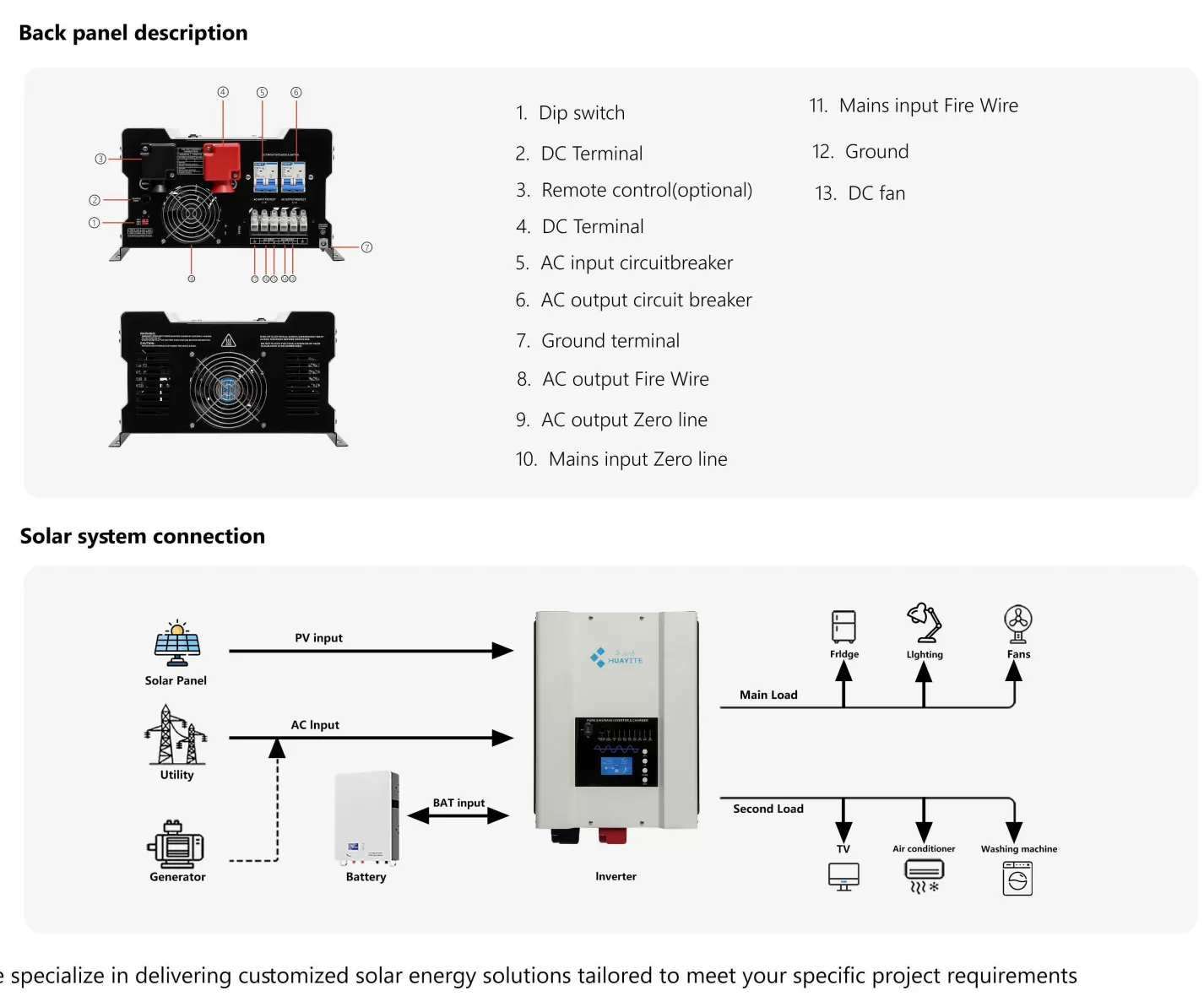

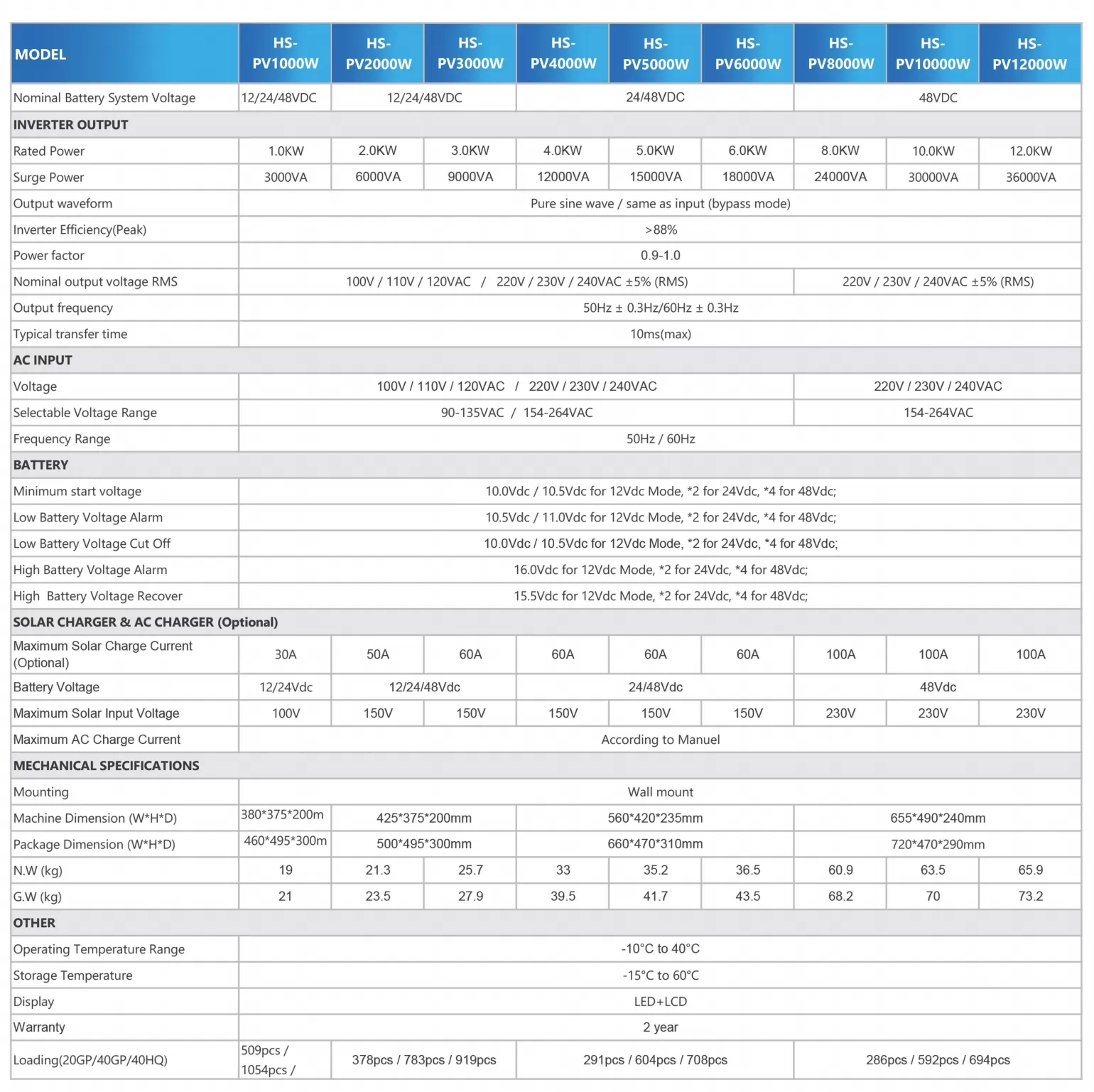

Parameter Category	Detailed Parameters	HS-PV1000W	HS-PV2000W	HS-PV3000W	HS-PV4000W	HS-PV5000W	HS-PV6000W	HS-PV8000W	HS-PV10000W	HS-PV12000W
System Voltage	Nominal Battery Voltage	12/24/48VDC	12/24/48VDC	12/24/48VDC	24/48VDC	24/48VDC	24/48VDC	48VDC	48VDC	48VDC
Inverter Output	Rated Power	1.0KW	2.0KW	3.0KW	4.0KW	5.0KW	6.0KW	8.0KW	10.0KW	12.0KW
	Surge Power	3000VA	6000VA	9000VA	12000VA	15000VA	18000VA	24000VA	30000VA	36000VA
	Out put Waveform	Pure Sine Wave / Same as Input (Bypass Mode)
	Efficiency (Peak)	>88%
	Nominal Output Voltage RMS	100/110/120VAC；220/230/240VAC ±5% (RMS)					220/230/240VAC ±5% (RMS)
	Typical Transfer Time	10ms (max)
AC Input	Voltage Range	90-135VAC / 154-264VAC						154-264VAC
Battery	Min. Start Voltage	10.0Vdc (12V mode), 2 (24V), 4 (48V)
Battery	Low Voltage Cut-off	10.0Vdc (12V mode), 2 (24V), 4 (48V)
Solar Charging (Optional)	Max Solar Charge Current	30A	50A	60A	60A	60A	60A	100A	100A	100A
	Battery Voltage	12/24Vdc	12/24/48Vdc	12/24/48Vdc	24/48Vdc	24/48Vdc	24/48Vdc	48Vdc	48Vdc	48Vdc
	Max Solar Input Voltage	100V	150V	150V	150V	150V	150V	230V	230V	230V
Mechanical Specs	Dimensions (WHD) mm	380375200	425375200	425375200	560420235	560420235	560420235	655490240	655490240	655490240
Mechanical Specs	Net Weight (N.W) kg	19	21.3	25.7	33	35.2	36.5	60.9	63.5	65.9
Other	Working Temp Range	-10℃to40℃
Other	Warranty	2 Years

FAQs

How to Choose the Right MPPT Controller Size?

Calculate the required charging current using this formula:

Charging Current (A) = Total PV Wattage (W) ÷ Battery Voltage (V) × 1.25 (Safety Factor)

Example: 800W PV array + 48V battery bank → 800 ÷ 48 × 1.25 = 20.8A → Choose a 20A or 30A controller.
Also, ensure the PV open-circuit voltage (Voc) does not exceed the controller's maximum PV input rating.

What is the Correct Wiring Order?

To avoid damage, follow this sequence strictly:

Connect the Battery first (positive to positive, negative to negative).
Connect the Solar Panels (PV input).
Connect the Load (optional).
Note: Use appropriately sized cables and fuses for safety.

Why is My Controller Not Charging?

PV Voltage Too Low: Ensure the solar panel voltage is at least 5V higher than the battery voltage.
Wiring Issues: Check for reversed polarity, loose connections, or blown fuses.
Battery Full: The controller will taper or stop charging once the battery is full.
Over-temperature Protection: The controller may reduce current if it gets too hot.

What is Temperature Compensation?

A built-in sensor adjusts the charging voltage based on battery temperature. It prevents overcharging in hot weather and undercharging in cold weather, significantly extending battery life.

What is an MPPT Solar Charge Controller?

MPPT (Maximum Power Point Tracking) is an advanced technology that continuously monitors the voltage and current output from solar panels, dynamically adjusting the operating point to extract the maximum available power under varying light conditions. It efficiently converts high PV voltage to the battery’s charging voltage, significantly boosting energy harvest compared to traditional PWM controllers.
